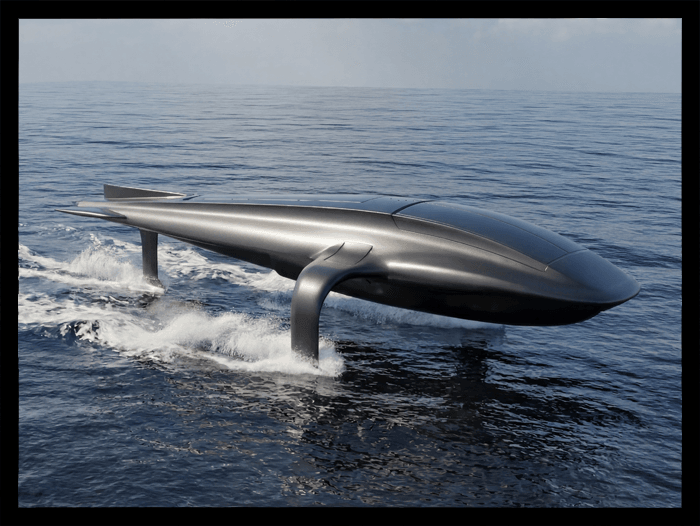

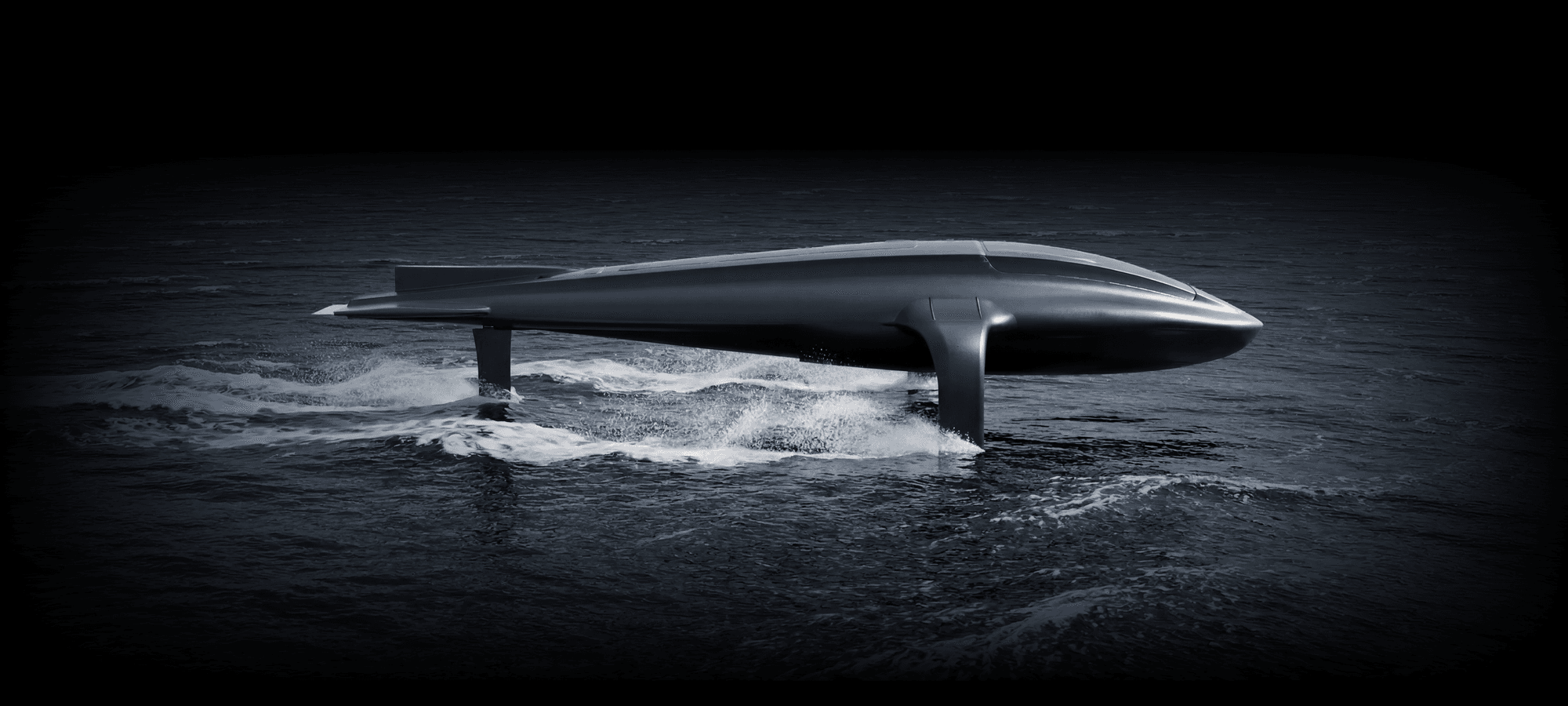

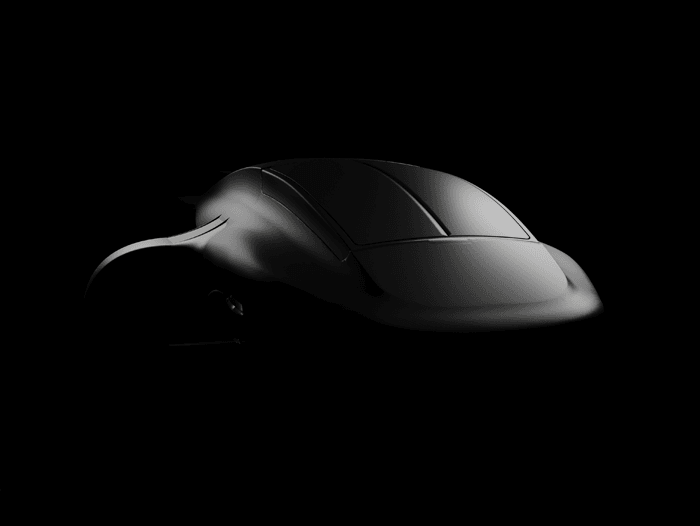

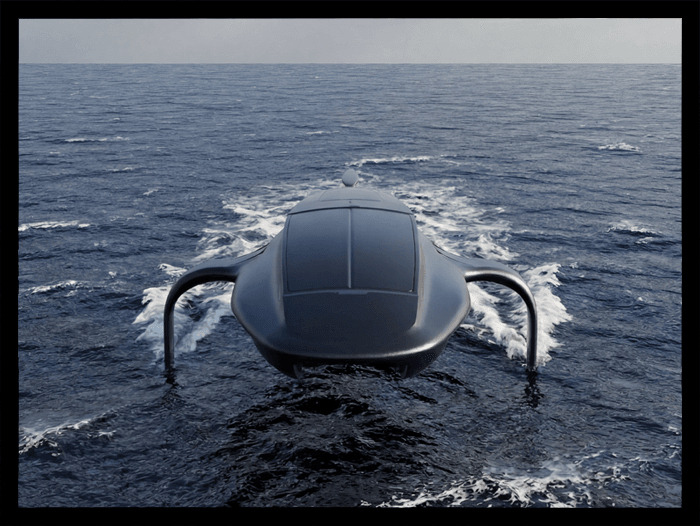

Kraken’s pioneering low-cost, low-signature, all-electric, foiling Uncrewed Surface Subsurface Vessel (USSV) platform designed  for a wide range of applications, including Defence, Security and Commercial.

ABOUT

The K4 MANTA is capable of rapid uncrewed surface transit of sensor or effect payloads, before submerging for covert infiltration, persistent recce or loitering roles.

Three variants, from the lowest-signature 18ft to the highly versatile 36ft and 54ft multi-purpose versions capable of substantial modular payload carriage.

The lightest, smallest, and stealthiest MANTA, this USSV could operate undetected for seven days and at speeds up to 30 knots, carrying 100 kilograms user-defined payload.

  • Length Overall: 5.5m
    Beam Overall: 2.0m
    Draft Overall: 1.2m
    Max Displacement: 500kg
    Powertrain: Electric
    Max Speed: 30kt (Surface)
    Range: 300NM at 25kts
    Endurance: 7 days - mission dependent
    Crew: Autonomous
    Structure: Composite
    Payload: 100kg
    Operating Depth: 10m (30m target)

  • • Reduced signature design
    • End-user configurable modular payload
    • Autonomous and advanced remote operation
    • Auterion operating system
    • Open interfaces to autonomy
    • Sensors - EO / Radar / Sonar
    • User defined C5ISR fit (optional)
    • Stable platform reducing shock and vibration
    • Organic form factor for biomimicry

  • • ASuW - Maritime Strike
    • ASuW - Maritime forward screening
    • ASW - Deploy and support cordon/barrier ops
    • Littoral - Forward force Support and Resupply
    • Littoral - Theatre entry reconnaissance
    • Littoral - Conduct Littoral Access Point Recce
    • Littoral - Forward operating base for UXV
    • Littoral - Strike
    • C4ISR - Conduct Littoral C4ISR
    • Effects - CEMA – EW Offensive and Defensive
    • Effects - Off board Kinetic - Non-Kinetic
    • Teamed multi-axis attack

11m of all-electric surface subsurface autonomy, built from composites, hitting 45 knots with 1,500kg payload.

300NM range, up to 10-day endurance, and just 0.8m draft, this USSV slips in, hits hard, and vanishes.

  • Length Overall: 11m
    Beam Overall: 3.3m
    Draft Overall: 0.8m
    Max Displacement: 4,000kg
    Powertrain: Electric
    Max Speed: 45kt (Surface)
    Range: 300NM at 25kts
    Endurance: 10 days - mission dependent
    Crew: Autonomous
    Structure: Composite
    Payload: 1,500kg
    Operating Depth: 10m (30m target)

  • • Reduced signature design
    • End-user configurable modular payload
    • Autonomous and advanced remote operation
    - Auterion operating system
    - Open interfaces to autonomy
    • Sensors - EO / Radar / Sonar
    • User defined C5ISR fit (optional)
    • Stable platform reducing shock and vibration
    • Organic form factor for biomimicry

  • • ASuW - Maritime Strike
    • ASuW - Maritime forward screening
    • ASW - Deploy and support cordon/barrier ops
    • Littoral - Forward force Support and Resupply
    • Littoral - Theatre entry reconnaissance
    • Littoral - Conduct Littoral Access Point Recce
    • Littoral - Forward operating base for UXV
    • Littoral - Strike
    • C4ISR - Conduct Littoral C4ISR
    • Effects - CEMA – EW Offensive and Defensive
    • Effects - Off board Kinetic - Non-Kinetic
    • Teamed multi-axis attack

At 16.5m with a 5,000kg payload, this diesel electric USSV hits 60 knots, ranges 1,000NM, and runs up to 30 days.

Autonomous, C5ISR-ready, with low-signature design, biomimicry, and shock-stable modularity baked in

  • Length Overall: 16.5m
    Beam Overall: 5m
    Draft Overall: 1.5m
    Max Displacement: 10,000kg
    Powertrain: Diesel Electric
    Max Speed: 60kt
    Range: 1,000NM at 25kts
    Endurance: 30 days - mission dependent
    Crew: Autonomous
    Structure: Composite
    Payload: 5,000kg
    Operating Depth: 10m (30m target)

  • • Reduced signature design
    • End-user configurable modular payload
    • Autonomous and advanced remote operation
    • Auterion operating system
    • Open interfaces to autonomy
    • Sensors - EO / Radar / Sonar
    • User defined C5ISR fit (optional)
    • Stable platform reducing shock and vibration
    • Organic form factor for biomimicry

  • • ASuW - Maritime Strike
    • ASuW - Maritime forward screening
    • ASW - Deploy and support cordon/barrier ops
    • Littoral - Forward force Support and Resupply
    • Littoral - Theatre entry reconnaissance
    • Littoral - Conduct Littoral Access Point Recce
    • Littoral - Forward operating base for UXV
    • Littoral - Strike
    • C4ISR - Conduct Littoral C4ISR
    • Effects - CEMA – EW Offensive and Defensive
    • Effects - Off board Kinetic - Non-Kinetic
    • Teamed multi-axis attack
